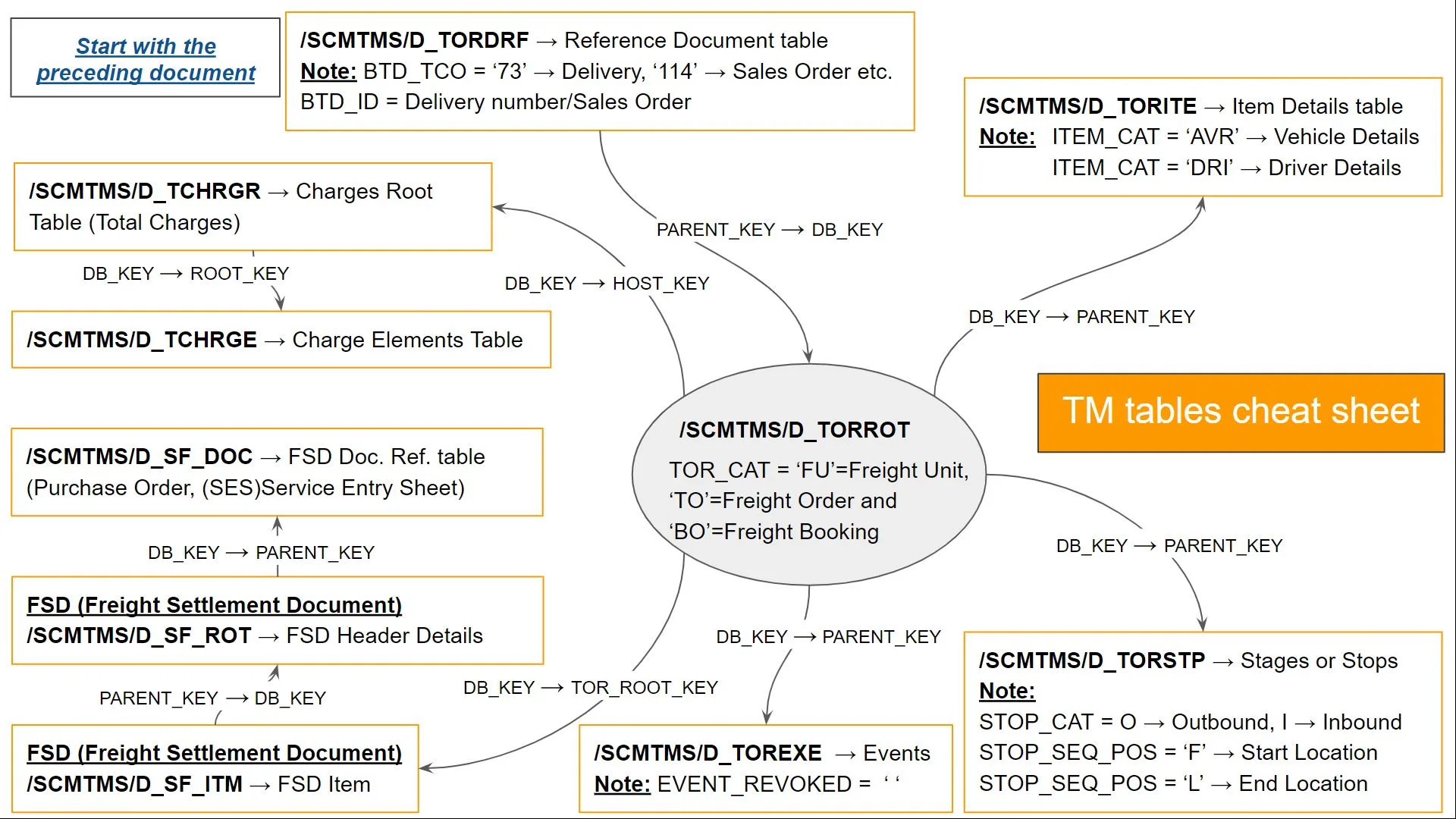

The diagram, created by Makrand Kekre, depicts a selection of key SAP Transportation Management (TM) tables and their relationships. It centers around the table /SCMTMS/D_TORROT (Freight Unit, Order, or Booking header) as a central point, and highlights other tables storing relevant information for documents and charges associated with that transportation header data. The table relationships are primarily established using key fields such as PARENT_KEY, DB_KEY, HOST_KEY and ROOT_KEY.
Table Names and Descriptions:
| Table Name | Description |
|---|---|
/SCMTMS/D_TORDRF |
Reference Document table. |
/SCMTMS/D_TCHRGR |
Charges Root Table (Total Charges). |
/SCMTMS/D_TCHRGE |
Charge Elements Table. |
/SCMTMS/D_TORITE |
Item Details table for vehicles and drivers. |
/SCMTMS/D_SF_DOC |
FSD Doc. Ref. table. |
/SCMTMS/D_SF_ROT |
FSD Header Details. |
/SCMTMS/D_SF_ITM |
FSD Item details. |
/SCMTMS/D_TORROT |
Header table for Freight Unit, Freight Order and/or Freight Booking. |
/SCMTMS/D_TOREXE |
Events. |
/SCMTMS/D_TORSTP |
Stages or Stops. |
