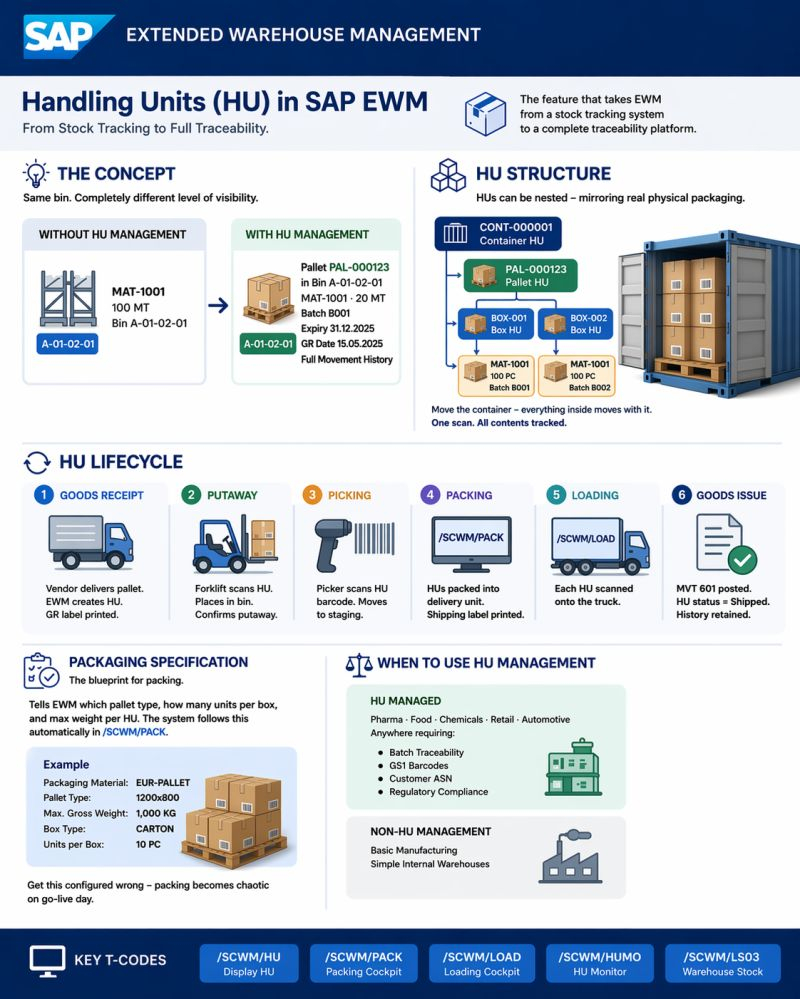

This visual presents a structured overview of Handling Units (HU) in SAP Extended Warehouse Management. It explains how HUs are used to track goods from stock receipt through internal warehouse movements up to final goods issue. The diagram combines concept explanation, structure, lifecycle steps, and configuration logic to show how HU management enables full traceability and operational control in the warehouse.
Handling Units in SAP EWM represent physical logistics units such as pallets, cartons, or boxes that contain one or more products. The business purpose of HU management is to provide item-level and container-level visibility, improve accuracy during warehouse operations, and ensure compliance with tracking, batch, and regulatory requirements. From this visual, the reader can understand when and why HUs are used, how they are structured, and how they move through standard EWM processes.
Concept Overview
The visual starts by contrasting warehouse processes without HU management versus with HU management.
- Without HU management
Stock is tracked only at bin and product level. Multiple materials can exist in the same bin, but there is limited visibility of how items are physically grouped or moved together. - With HU management
Each pallet or package is treated as a Handling Unit with a unique identifier. The HU carries detailed information such as material, quantity, batch, expiration date, goods receipt date, and full movement history. This enables a much higher level of visibility and traceability.
HU Structure
The diagram shows that Handling Units can be nested, reflecting real-world packaging.
- A container can hold multiple pallets.
- Each pallet can hold multiple boxes.
- Each box can contain specific materials and quantities.
This hierarchy mirrors physical packaging structures and allows the system to track movements at every level. When a container or pallet is moved, all lower-level contents move together in one system action.
HU Lifecycle in SAP EWM
The core of the visual is the HU lifecycle, illustrated as a sequential process:
- Goods Receipt
The vendor delivers goods already packed. SAP EWM creates HUs during goods receipt, typically based on packaging data. - Putaway
A forklift transports the HU to a warehouse bin. The entire HU is put away in one step, simplifying warehouse tasks. - Picking
Pickers scan the HU barcode. The HU or parts of it are moved to staging areas based on outbound requirements. - Packing
HUs can be repacked into new shipping HUs. Multiple picked HUs can be consolidated into a delivery HU. - Loading
Each HU is scanned and loaded onto a truck. The system ensures loading accuracy and completeness. - Goods Issue
Goods issue is posted. The HU status changes to shipped, and the full movement history is retained for traceability.
Packaging Specification
Another section explains how packaging rules drive HU creation:
- Packaging material (for example, euro pallet)
- Pallet type
- Maximum gross weight
- Box type
- Units per box
SAP EWM uses these specifications to automatically determine how many products fit into each HU during packing. Proper configuration ensures consistent and controlled HU creation.
When to Use HU Management
The visual highlights recommended usage scenarios:
- HU-managed warehouses
Industries such as pharmaceuticals, food, chemicals, retail, and automotive.
Typical requirements include batch traceability, expiration date control, regulatory compliance, and customer-specific packaging. - Non-HU-managed warehouses
Basic manufacturing or simple internal warehouses where detailed packaging and traceability are not required.
Key System Transactions
The bottom section lists common SAP EWM transactions related to HU processing, covering HU display, packing, loading, movement, and monitoring. These transactions support operational execution and visibility throughout the HU lifecycle.
Key Takeaways
- Handling Units provide container-level tracking in SAP EWM.
- HU structures reflect real physical packaging hierarchies.
- Moving an HU moves all contained items together.
- HU management improves traceability, accuracy, and compliance.
- Proper packaging specifications are essential for effective HU handling.
This visual acts as a concise reference for understanding how HU management works end-to-end in SAP EWM and how it supports modern warehouse operations.
