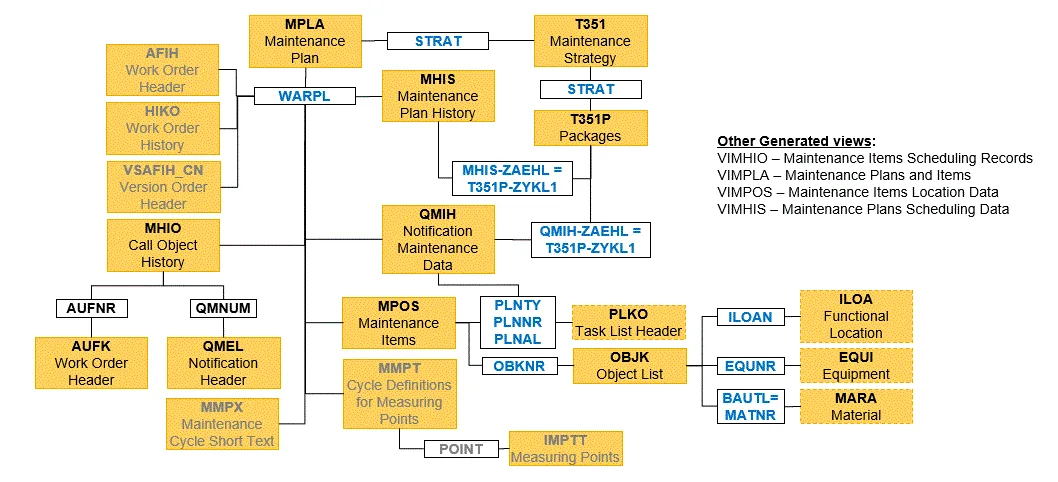

This diagram provides a comprehensive view of the key data interactions and relationships involved managing Maintenance Plans in SAP EAM (PM). It highlights the crucial role maintenance plans play in strategic asset management, particularly as companies migrate data from SAP ECC to SAP/4HANA. Here’s an expert breakdown of the key structures and their interactions:

Overview of Maintenance Plan Relationships

The diagram visually represents the relationships between tables at the core of maintaining and managing preventive and planned maintenance using Maintenance Plans. Understanding these connections is essential for accurate data migration and ongoing maintenance operations.

Core Tables and Their Roles

1. MPLA – Maintenance Plan Header:
   • Purpose: Acts as the cornerstone for each maintenance strategy, defining the overall plan’s structure and strategy.
   • Key Fields: WARPL (Maintenance Plan ID), STRAT (Strategy).
   • Interactions: Connects directly with Maintenance Items (MPOS) and interfaces with work management tables like AFIH (Work Order Header) and historic scheduling data in MHIS.
2. MPOS – Maintenance Plan Items:
   • Purpose: Contains detailed data on individual maintenance items associated with a maintenance plan.
   • Key Fields:
     • PLNTY (Task List Type),
     • PLNNR (Task List Group),
     • PLNAL (Task List Group Counter).
   • Interactions: Links plans to specific tasks (PLKO) and creates dynamic Object Lists (OBJK) for execution.
3. T351 and T351P – Maintenance Strategy and Packages:
   • Purpose: Define the overarching strategy for maintenance plans and package specifics.
   • Interactions: The diagram shows how maintenance plans reference strategies (STRAT) and packages for frequency calculation and plan execution.
4. MHIS – Maintenance Plan History:
   • Purpose: Maintains a history of maintenance plan execution, including scheduling and cycle information.
   • Key Fields: MHIS-ZAEHL used with T351P-ZYKL1 for cycle tracking.
   • Interactions: Provides historical data and continuity irrelevant to plan modifications or data transitions.

Task List and Object Connections

• PLKO – Task List Header:
  • Purpose: Specifies task lists that are associated with maintenance items, crucial for task execution planning.
  • Key Fields: Tied to its group and counter to align with tasks in MPOS.
• OBJK – Object List:
  • Purpose: Lists all technical objects tied to maintenance plans, either for routine or condition-based maintenance.
  • Interactions: POPULATED when changes are made in maintenance item assignments, impacting EQUNR (Equipment), TPLNR (Functional Locations), and MATNR (Materials).

Historical and Conditional Connections

1. Work Order and Notification History (AFIH, HIKO, QMEL):
   • Interaction: Stores historical data of orders and notifications linked through maintenance events.
   • Importance: Provides comprehensive resolution tracking from initiation (notification) to completion (work order).
2. Call Object History (MHIO):
   • Purpose: Details the execution history of specific calls within maintenance plans.
   • Interactions: Ensures transparency in maintenance scheduling and task fulfillment.
3. Measuring Points and Cycle Definitions (IMPTT, MMPT):
   • Purpose: Bridge maintenance plans with equipment’s real-time measurements or measuring points.
   • Interactions: Critical links for counter-based plans. MMPT holds cycle data based on measurements.

Additional Data: Generated Views

• The diagram notes various generated views (VIMPLA, VIMPOS, etc.) that aggregate data for analytical insights and oracle plan reviews aiding in improved resource management and strategic scheduling.

Key Considerations for Migration

• Data Integrity and Validation: Ensuring all relationships, especially around WARPL and linked task lists, are verified for accuracy to prevent execution hiccups post-migration.
• Date Management: Carefully aligning validity dates, particularly necessary start dates, during data transitions, to ensure continuity and prevent disruptions.
• Cycle Management: Consistency in cycle and strategy details across MHIS data and proactive checks on PLKO alignments assures reliable plan deployments in the new environment.

This detailed look at the SAP EAM data relationships for Maintenance Plans serves as crucial reference for effectively migrating and managing these entities within SAP/4HANA, facilitating greater control, transparency, and efficiency in maintenance operations. Understanding this interplay assists maintenance professionals in crafting more robust, strategic maintenance processes that are data-centric and future-proofed for organizational growth and operational excellence.
