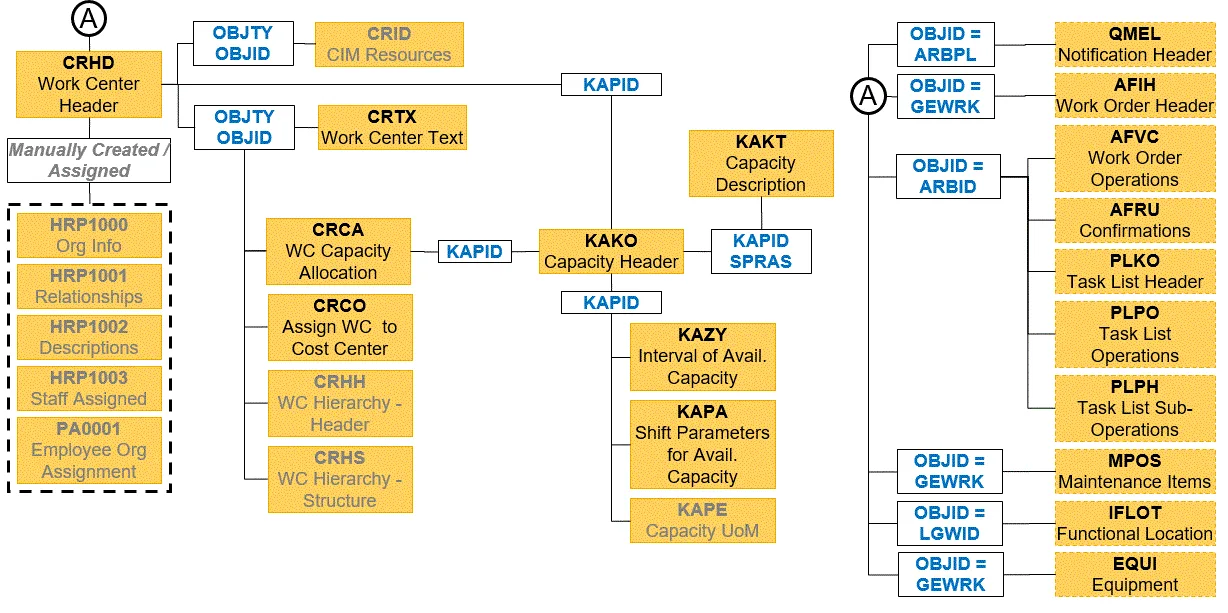

The diagram provided offers a detailed look into the data structures and interactions within the SAP EAM (PM) module, specifically concerning Work Centers (CRHD), Capacities (KAKO), and their integration with vital maintenance objects such as Notifications, Work Orders, and Task Lists. Understanding these interactions is key for configuring the SAP system to accurately reflect organizational capabilities and requirements.

Work Center and Capacity Structure Tables in SAP

  1. CRHD – Work Center Header
    • Purpose and Scope: This is the core table holding essential information about work centers, crucial for resource allocation in maintenance, production, and service environments.
    • Key Related Tables:
      • CRID – CIM Resources: Associates CIM resource details with Work Centers.
      • CRTX – Work Center Text: Contains descriptive texts providing additional context or identifiers for work centers.
  2. Human Resources and Organizational Assignment
    • HRP1000 – Org Info: Holds basic organizational information pertinent to work centers.
    • HRP100, HRP1002, HRP1003, PA0001: These tables detail relationships, descriptions, staff, and employee assignments critical for linking human resources to physical work centers.
    • Interactions: These tables are manually created or assigned during system configuration to ensure all HR-related aspects align with physical resource planning.
  3. Capacity Management (KAKO – Capacity Header)
    • Purpose and Scope: Focuses on managing capacity data essential for planning available resources and their allocation.
    • Key Related Tables:
      • KAKT – Capacity Description: Offers descriptive information on available capacities.
      • CRCA – WC Capacity Allocation, CRCO – Assign WC to Cost Center: Essential for associating resources with financial elements and ensuring proper cost tracking.
      • CRHH & CRHS – WC Hierarchy: Define hierarchical structures, organizing work centers into logical groupings for better management and reporting.
    • Capacity Parameters:
      • KAZY, KAPA, KAPE: Define intervals of availability, shift parameters, and units of measure for capacity utilization, critical for effective shift and resource management.

Work Center Tables Integration with Maintenance Objects in SAP

  1. Integration with Maintenance Processes
    • Covers how work centers and capacities map into actual processes for maintenance, demonstrating their role in managing notifications, work orders, and task planning.
    • Key Tables:
      • QMEL – Notification Header: Indicates issues or conditions requiring maintenance.
      • AFIH – Work Order Header, AFVC – Work Order Operations, AFRU – Confirmations: Handle work order management from creation through execution and confirmation.
      • PLKO, PLPO, PLPH – Task Lists: Define the structure and execution order of tasks, integral to maintenance planning.
    • Maintenance Items and Locations:
      • MPOS – Maintenance Items, IFLT – Functional Location, EQUI – Equipment: Connect work centers to specific tasks and physical asset management.

Key Interactions and Application:

  • Work Centers and Capacities: Act as the nexus where human resources, financial data, and operational tasks converge, informing planning and execution strategies.
  • System Interactions:
    • Work Centers provide resource data input into maintenance planning (represented in Task Lists, Notifications, Work Orders).
    • Capacities linked to WCs allow for detailed planning regarding available resources, which are further validated against operational tasks and workforce assignments.

Conclusion:

The diagram serves as comprehensive guide to the configuration and operation of Work Centers and Capacities within the SAP PM module, thus underpinning efficient maintenance and operational planning. Understanding these relationships enables organizations to leverage SAP’s capabilities to optimize maintenance processes, enhance operational efficiency, and ensure alignment of human and physical resources with strategic objectives. Such clear and detailed mapping is essential for setting up SAP ERP systems to deliver real value in terms of productivity, reliability, and cost-effectiveness.
