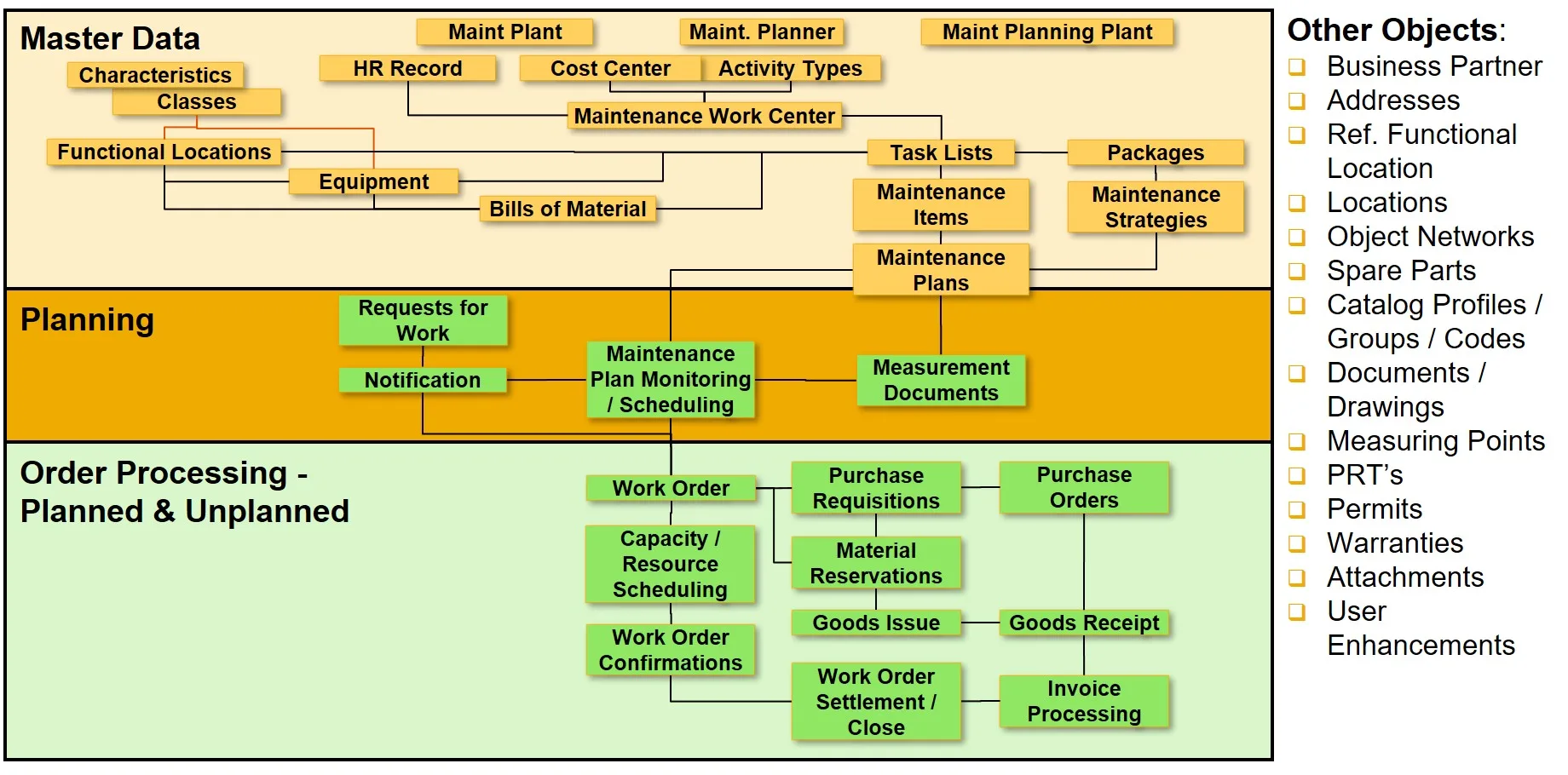

This diagram presents a comprehensive view of SAP EAM (PM) processes, highlighting the interplay between master data, planning, and order processing in plant maintenance. Below is an explanation of this diagram focusing on how objects interact within these processes.

Master Data as a Foundation of SAP PM:

Master data is the foundation of the SAP PM module, crucial for defining and supporting maintenance processes. It includes:

1. Characteristics & Classes: These are used to classify and provide detailed descriptions of functional locations and equipment.
   • Interactions: They enrich functional location and equipment data with specific attributes, supporting advanced maintenance scheduling and reporting.
2. Functional Locations and Equipment: Represent physical assets and their locations within the plant.
   • Interactions:
     • Functional Locations: Linked to Equipment and Classes.
     • Equipment: Can belong to a Functional Location and is associated with Bills of Materials (BOMs).
3. HR Record, Cost Center, Activity Types: Relate to human resource management and cost accounting.
   • Interactions:
     • HR Records: Linked to Maintenance Work Centers defining resource allocation.
     • Activity Types: Define the cost elements and are connected to Cost Centers and Work Centers.
4. Maintenance Work Center: Key for planning maintenance activities.
   • Interactions: Connects HR records with tasks, aligning with the organization’s structure.
5. Bills of Material (BOMs): Lists the materials or assemblies required for maintenance activities.
   • Interactions: Linked primarily to Equipment, specifying parts needed for repairs.
6. Task Lists, Maintenance Items, Maintenance Plans: Define routine and preventive maintenance tasks.
   • Task Lists: Outline the steps required to perform maintenance.
   • Maintenance Plans: Utilize Task Lists, aimed at scheduling and triggering maintenance activities.
7. Maintenance Planner Group and Maintenance Planning Plant: Define the organizational entities involved planning.
   • Interactions: They orchestrate maintenance strategies and plans across multiple facilities.

Planning Activities for Organizing Maintenance Works:

This section transitions from data setup to actionable items, organizing maintenance work:

1. Requests for Work: Initiate maintenance activities.
   • Interactions: Often derived from observed issues or preventive prompts, leading to Notifications.
2. Notification: Formal documentation of maintenance requirements.
   • Interactions: Serves as precursor to Work Orders, summarizing issues needing attention.
3. Maintenance Plan Monitoring/Scheduling and Measurement Documents: Ensure timely execution of maintenance.
   • Interactions:
     • Scheduling: Aligns Maintenance Plans with real-time operations.
     • Measurement Documents: Capture ongoing observations, influencing maintenance schedules.

Order Processing for Work Completion:

This final section covers execution, focusing on work order processes:

1. Work Orders: Core of maintenance execution, capturing the scope, resources, and scheduling.
   • Interactions:
     • Stem from Notifications and integrate all planning data.
     • Coordinate materials, HR, scheduling, and completion confirmations.
2. Capacity/Resource Scheduling: Manages workforce and equipment allocation.
   • Interactions: Ensures that the right resources are available for maintenance tasks.
3. Purchase Requisitions & Orders: Facilitate procurement for parts and services.
   • Interactions:
     • Initiated from Work Orders when materials are required.
     • Streamline the flow from requisitions to purchase orders and goods receipt.
4. Material Reservations and Goods Issue/Receipt: Inventory management processes.
   • Interactions:
     • Tied to Work Orders for ensuring availability of required parts.
5. Work Order Confirmations and Settlement/Close: Capture completion data and finalize maintenance.
   • Interactions:
     • Confirmations update labor and material usage.
     • Settlements close the financial loop post-task execution.
6. Invoice Processing: Handles vendor billing.
   • Interactions: Completes the procurement process with accounts reconciliation.

This diagram underscores the importance of having robust data management and efficient process workflows in the SAP PM module for optimal asset management and maintenance effectiveness. Proper setup and alignment of these elements facilitate improvements in plant reliability, cost efficiency, and operational uptime.
